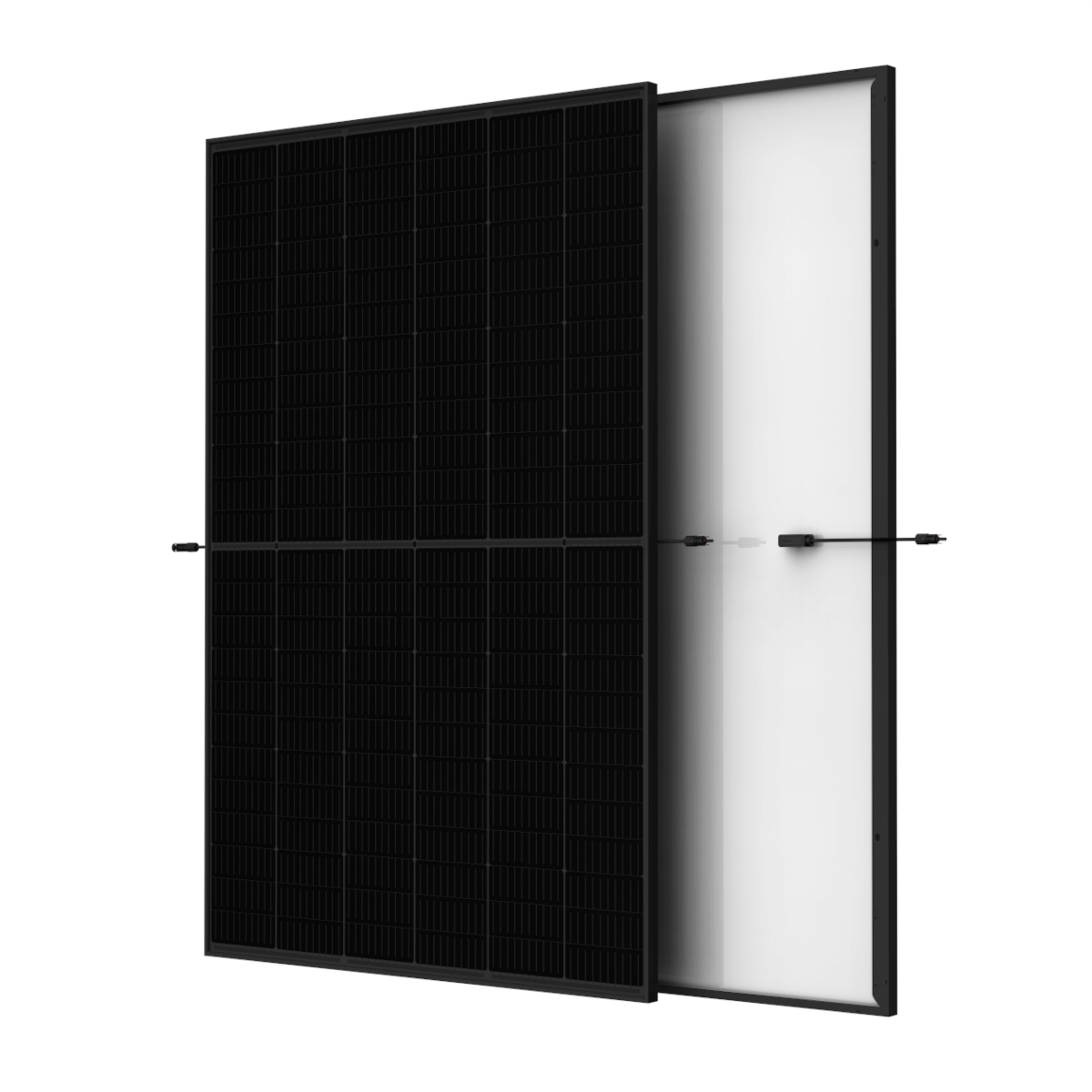

Trina 420 TSM-DE09R.05 Vertex S, Black
| Manufacturer Art. No.: | TSM-420DE09R.05 |
|---|---|
| Art. Nr.: | 10294 |
| Pieces per package unit: |
|
| Power: | 420 Watt |
| Technology: | PERC |
| Backsheet: | Black |
| Glass-glass: | 15 years |
| Dimensions: | 1762 × 1134 × 30 mm |
| Frame color: | Black |
| Solar panel type: | Mono solar panels |
Prices are only visible to business customers upon successful registration.
- Sold out
On request
Product number:
10294
Description
Vertex S 420 watts mono-crystalline glass-foil module
Trina launches the new Vertex S series of PV modules. The Vertex S series is Trina's first product to come with a 15-year product warranty at the time of launch. The new high-performance module achieves an output power of up to 420 W with modest space requirements. Multi-busbar technology is integrated, which serves to improve the light-catching effect, reduce series resistance and improve current consumption. Likewise, with the help of high-density cell compression technology, there is hardly any spacing between cells within the module. Thanks to the dark appearance of the module, it looks elegant on rooftops. The Vertex S series can be used flexibly and is intended for both residential and commercial applications.
Product advantages
- IEC certified
- Module with its electrical properties can be used like conventional half-cell modules
- High-density cell interconnect technology for higher module efficiency
- Multi-busbar technology
- 30 mm frame height, very stable
- System design and planning exactly the same as before
- 15 years product warranty on workmanship
- 25 years performance guarantee
Product features Trina 420 TSM-DE09R.05 Vertex S, Black
- 420 Wp
- 144 mono-crystalline cells (210 mm third cells), with an arrangement of 5 × 12 cells per module half
- Efficiency: 21%
- Black module frame
- Black backsheet
- Dimensions: 1762 × 1134 × 30 mm (HxWxD)
- Weight: 21.8 kg
- Connector: MC4 EVO2
- Cable length at the module: 1100 mm (Landscape)
- Snow load up to 6.000 Pa
- Wind load up to 4.000 Pa
- Current in Impp 10.17 A
- Short circuit current Isc 10.69 A
- Power temperature coefficient: -0.34 %/°C
-
