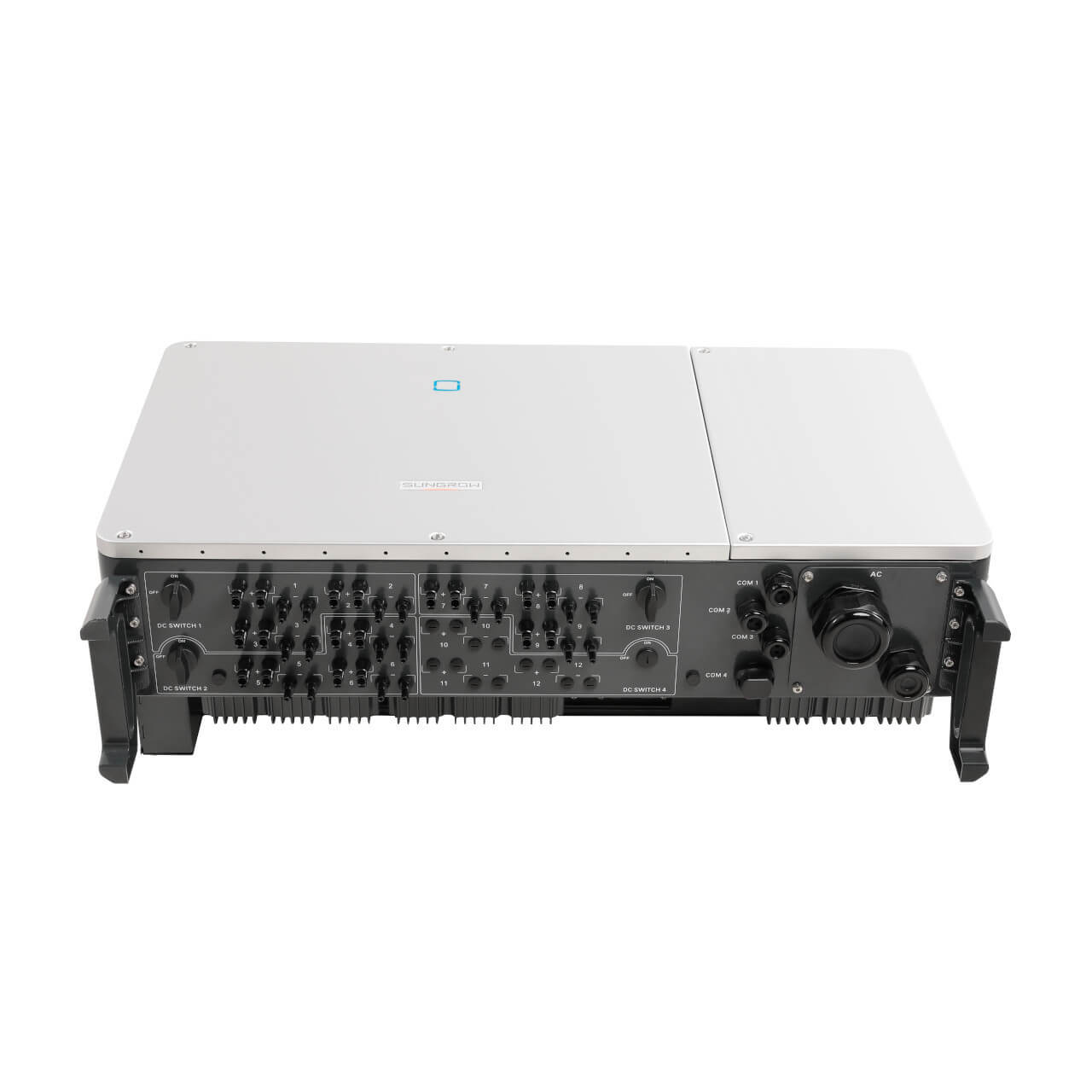

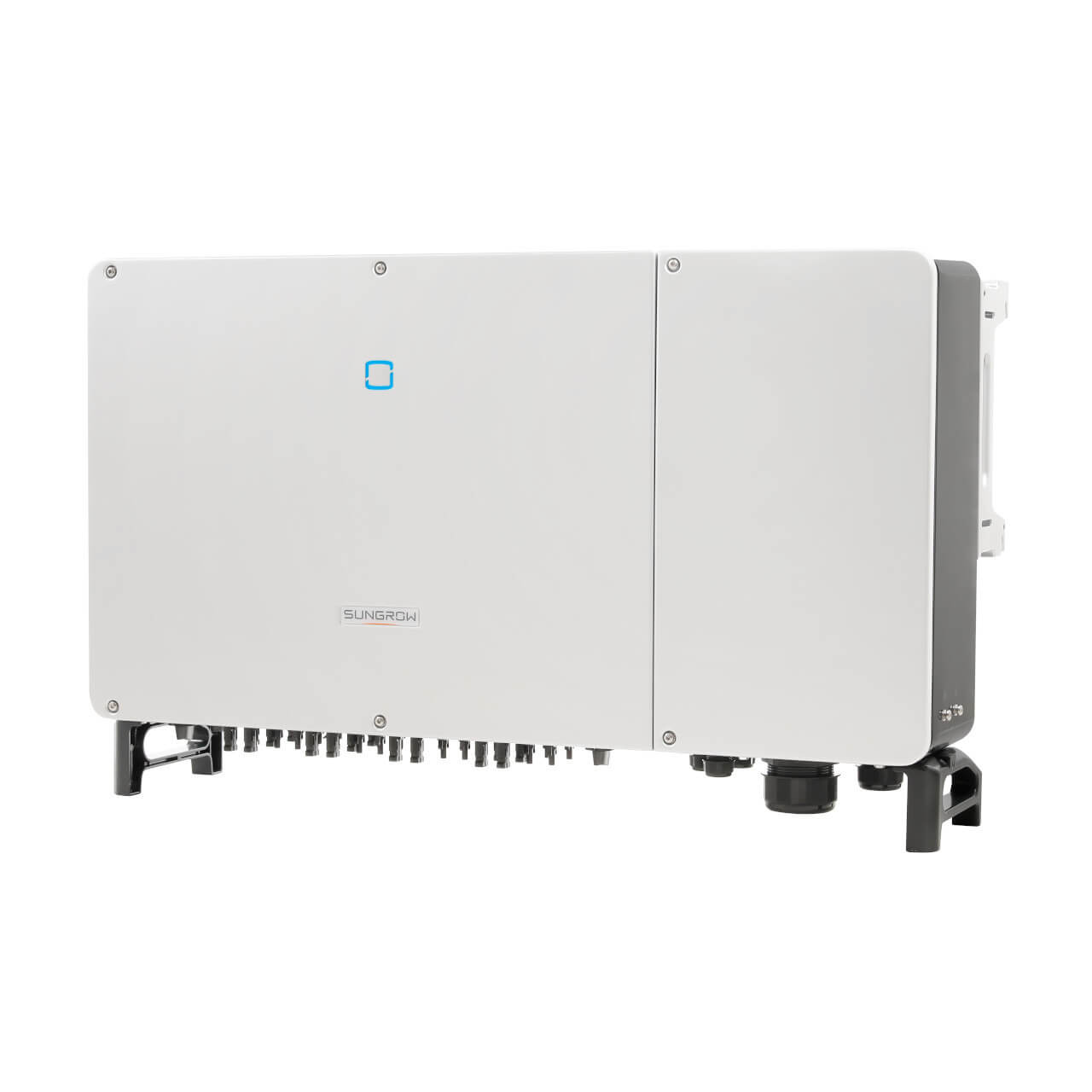

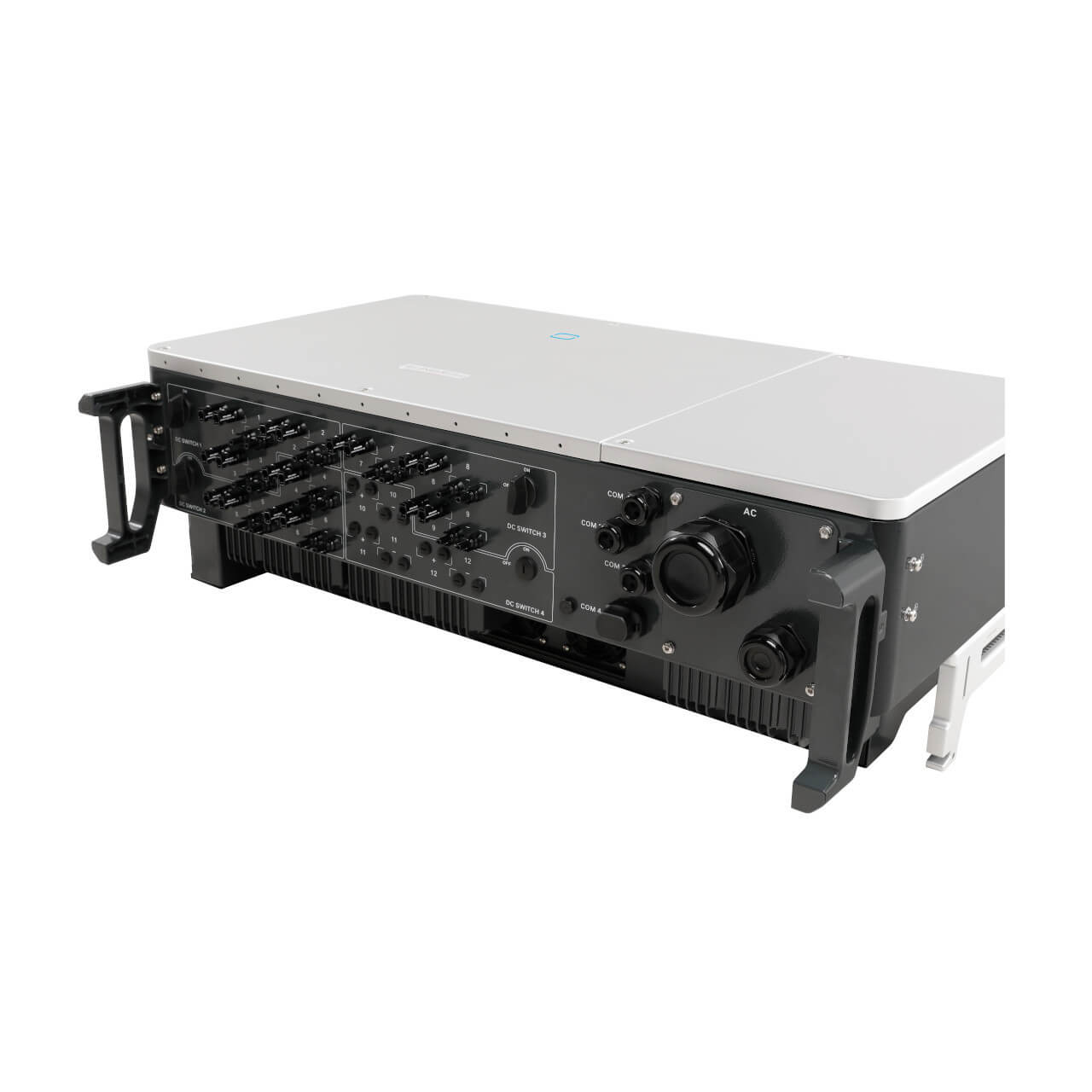

Sungrow SG250HX
| Type of manufacturer: | SG250HX |
|---|---|
| Manufacturer Art. No.: | ASG01523 |
| Art. Nr.: | 5364 |
| Pieces per package unit: |
|
| Phases: | 3 |
| MPP-Tracker: | 12 |
| AC power: | 250 kW |
| Warranty: | 5 years |
| Communication: | RS485 / PLC, WiFi und Ethernet optional |
| MPP voltage range: | 600-1500 Volt |
| Inverter type: | PV inverter, Project inverter |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Project articles
On request
Product number:
5364
Description
Sungrow SG250HX – the perfect inverter for your projects
Only certified for medium voltage 4110 & 4220! AC rated voltage: 3 / PE, 800 V
In Austria, please check local regulatory requirements!
SInce 1997, SUNGROW has been developing products for the PV industry and has become a leading manufacturer of inverters worldwide. To date, SUNGROW has installed inverters with a total power of 87 GW worldwide and is a leading manufacturer in Europe in the field of project inverters.
Product advantages
- Status LED
- Input voltage range of 600-1500V
- High efficiency of up to 98.8%
- Temperature-controlled active cooling
- DC overvoltage protection type 2
- AC overvoltage protection type 2
- PID-Recovery
- Intelligent string current monitoring without fuses
- Compatible with bifacial modules
- Q at night – function
Product features Sungrow SG250HX
- 250 kVA power, 3-phase
- 12 MPP trackers, 860-1300 V nominal
- 2 MC4-EV02 (max. 6 mm²) inputs per MPPT
- 1 x RS485
- Web server through optional Wi-Fi or Ethernet stick
- Dimensions: 1051 x 660 x 363 mm
- Protection category: IP66
- Weight: 95 kg
The perfect choice for medium and large systems as often used in commercial or agricultural applications.
