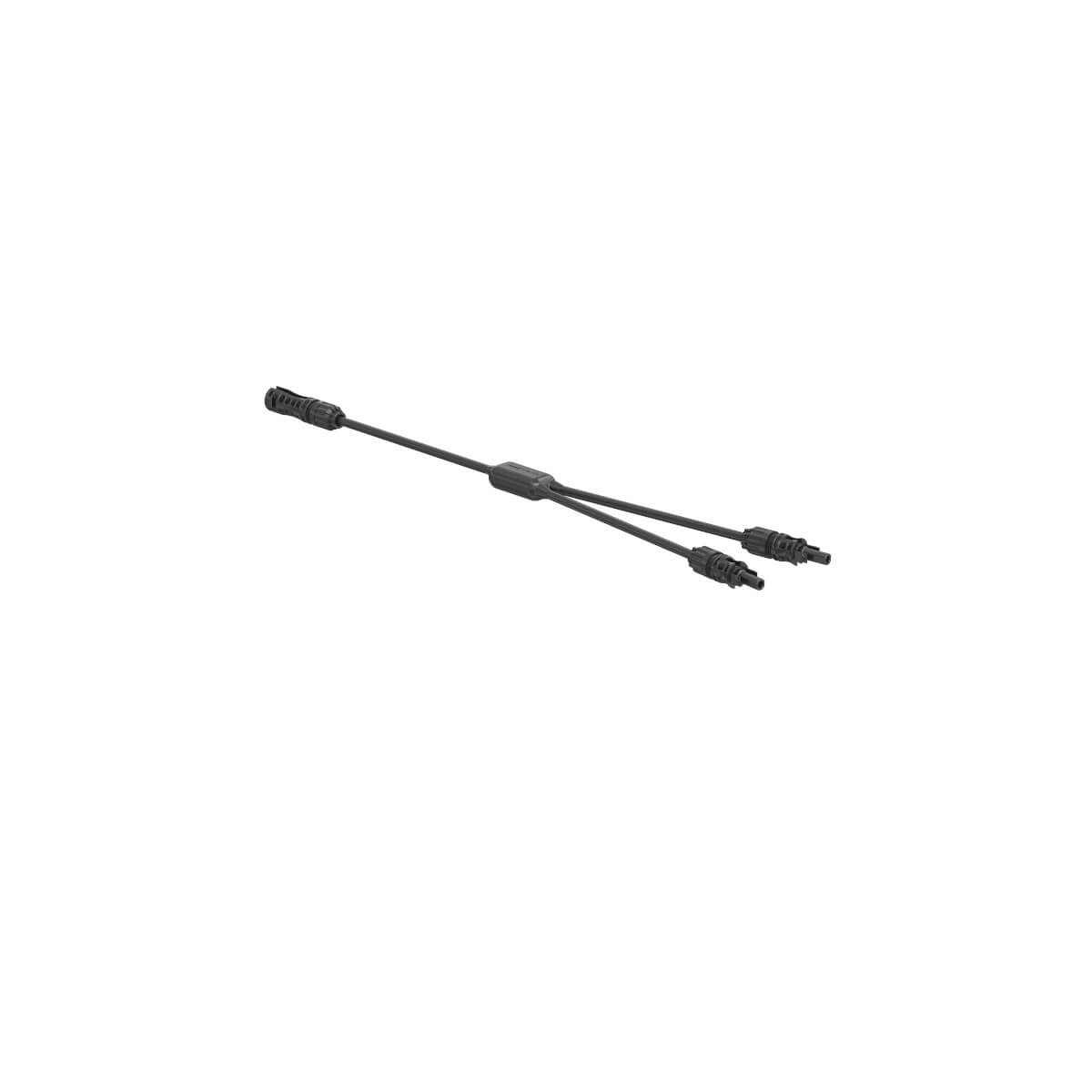

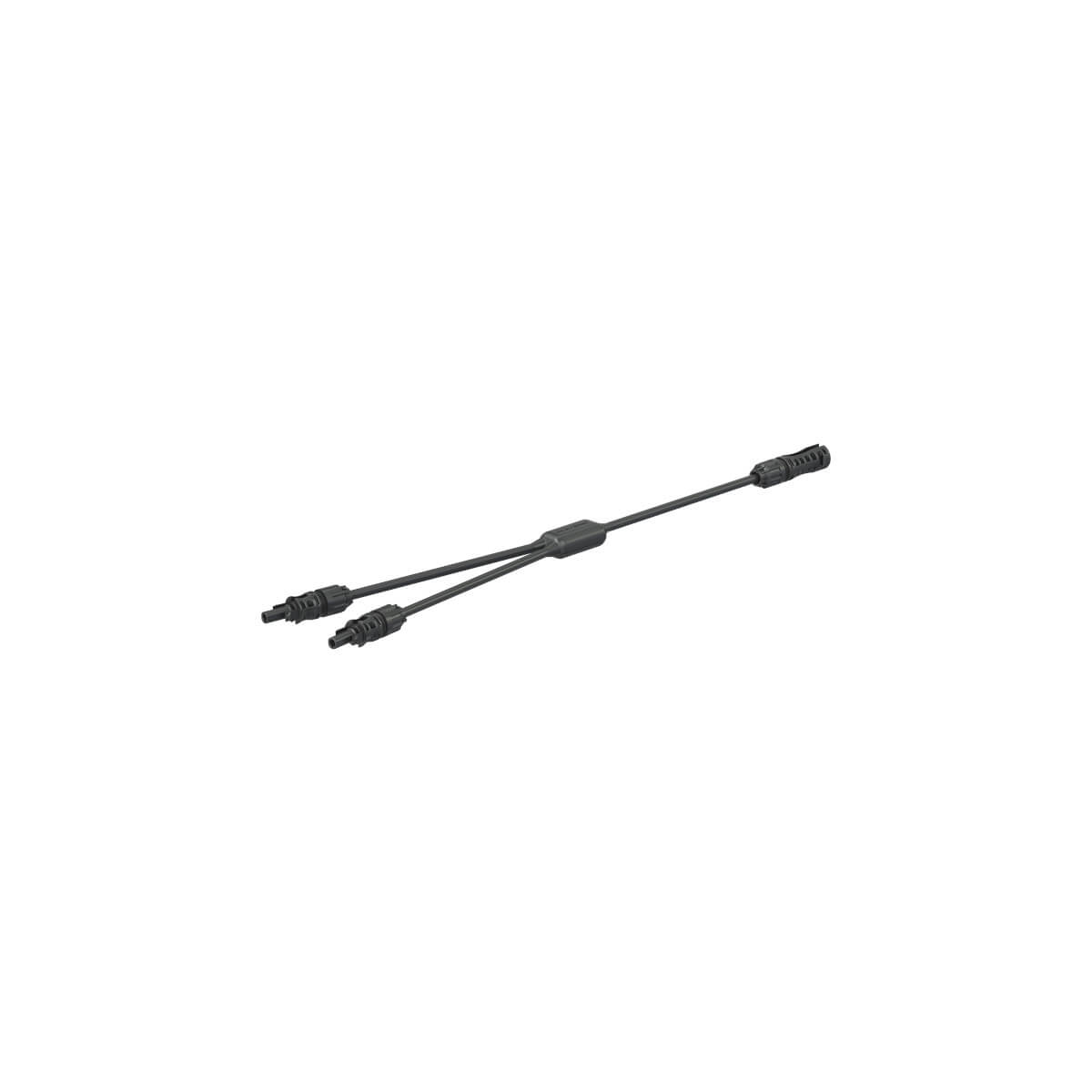

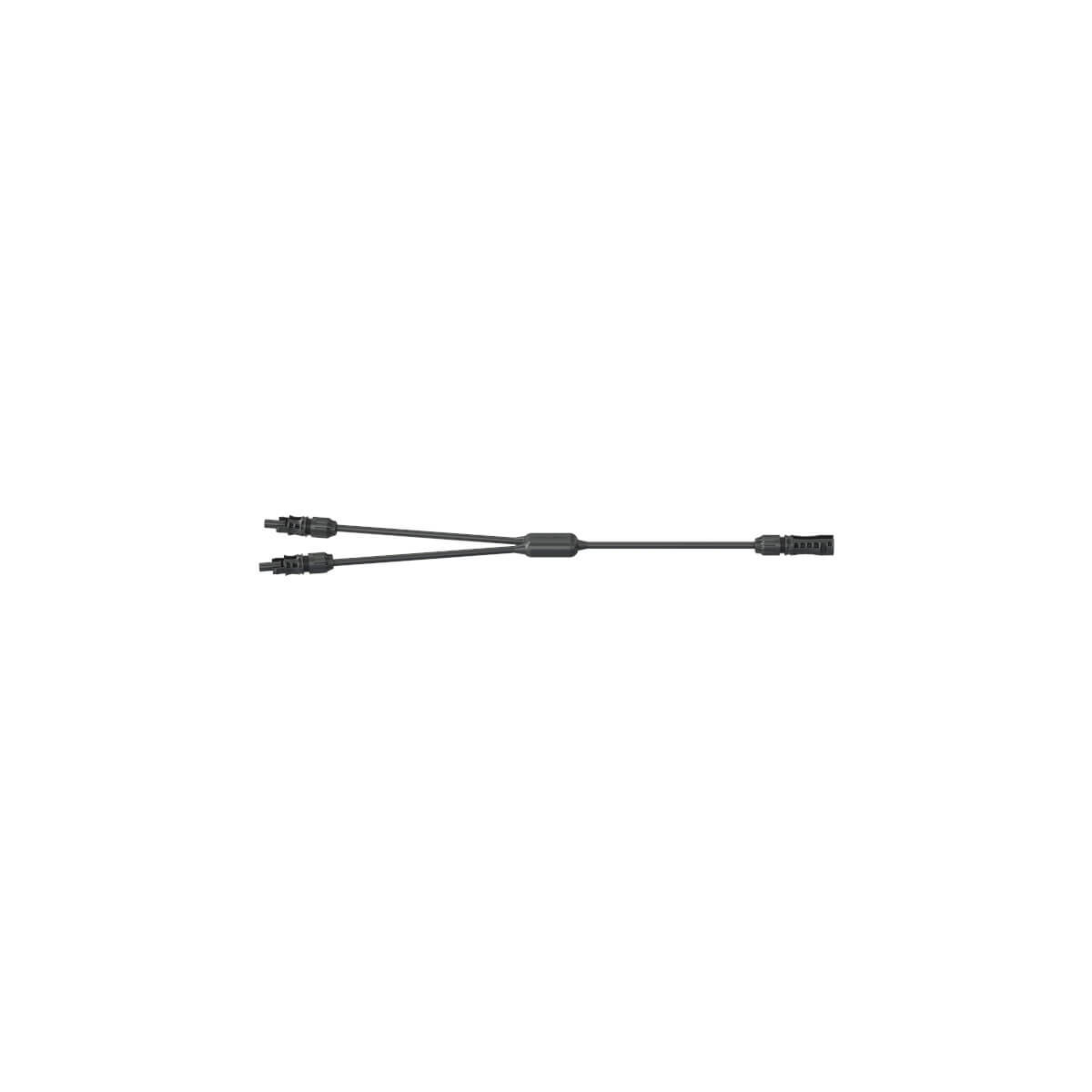

Stäubli MC4-EVO 2 Y-splitter 1,500 V, 53 A, 2 x socket, 1 x plug
| Type of manufacturer: | PV-K/SPL-Y-6-15/15-15ESS/EP-0050 |
|---|---|
| Manufacturer Art. No.: | 32.0334 |
| Art. Nr.: | 8993 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8993
Description
Stäubli Multi Contact MC4-EVO 2 Y-splitter for system voltages up to 1,500 V DC / 53 A
Stäubli's MC4 and MC4-EVO 2 connectors are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.
The scope of delivery includes the socket as well as the inner part.
Product advantages
- Low heat generation
- Minimum energy loss
- Certified according to TÜV Rheinland 2PfG 191
- Highest protection category IP65
- Can also be used in systems beyond the photovoltaic sector
Product features Stäubli MC4-EVO 2 Y-Splitter 1,500 V DC / 53 A
- Cable length: 50 cm
- Cable cross section: 6 mm²
- Rated voltage: 1,500 V DC
- Rated current: 53 A
- Ambient temperature: -40 °C to +85 °C
- Protection category: IP 65
- 2 x socket, 1 x plug
The DC cabling system offers first-class quality and outstanding features. The unique manufacturing process with vulcanization permanently delivers the highest IP protection and offers superior performance even under harsh climatic conditions.
