SolarEdge SE2200H-BEN4
| Manufacturer Art. No.: | SE2200H-RW000BEN4 |
|---|---|
| Art. Nr.: | 8127 |
| Pieces per package unit: |
|
| Phases: | 1 |
| AC power: | 2.2 kW |
| Warranty: | 12 years |
| Communication: | Ethernet, RS485 |
| Inverter type: | PV inverter |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8127
Description

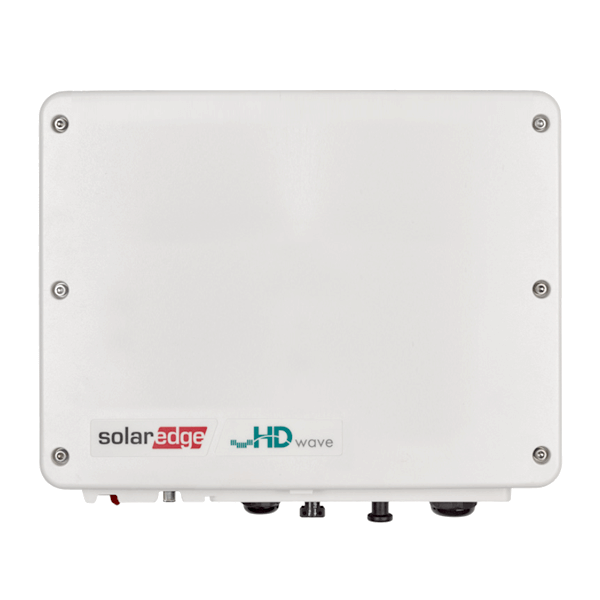

SolarEdge SE2200H-BEN4 single-phase PV inverter for optimizers
SolarEdge inverters have no MPP tracker and one input for the SolarEdge module optimizers. With fixed voltage technology, the SolarEdge inverter always operates in the optimal input voltage range regardless of the module and string count. Performance data from each PV module optimizer is transmitted to the SolarEdge inverter via the string line and can be visualized via the Internet in the SolarEdge Monitoring Portal. SolarEdge inverters come with a standard 12-year warranty, attesting to the high quality of the inverters.
The SolarEdge N4 series inverters do not have a display. Commissioning the inverter is quick and easy with the SolarEdge app on your smartphone.
Product advantages:
- Inverter designed for SolarEdge optimizers only
- Rated DC voltage 380 Vdc
- Very high efficiency of up to 99.2%
- Connections for ripple control receiver
- Optional Wi-Fi, ZigBee gateway or GSM
Product features SolarEdge SE2200H-BEN4:
- 2.2 kVA power 1-phase
- 1 pair of MC4 inputs
- Interfaces: Ethernet RJ45, RS485
- Protection category: IP65
- Standard warranty: 12 years
- Dimensions: 280 x 370 x 142 mm (H x W x D)
- Weight: 7.8 kg
