SolarEdge optimizer S500B-1GM4MRM
| Manufacturer Art. No.: | S500B-1GM4MRM |
|---|---|
| Art. Nr.: | 7383 |
| Pieces per package unit: |
|
| Warranty: | 25 years |
| Communication: | Powerline, Kabel: 0.1 m/(+) 2.3, (-) 0.10 m |
| MPP voltage range: | 12,5 - 105 Volt |
| Inverter type: | Optimizer |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
7383
Description
SolarEdge S500B Power Optimizer for Solar Modules up to 500 Watt with high voltages and/or shorter strings
The next generation of SolarEdge optimizers.
SolarEdge power optimizers help get the most power out of any PV system. The S500B optimizer is perfect for modules up to 500 Wp and high voltages and/or shorter strings.
Advantages of the SolarEdge optimizer
- Maximum power at module level
- The entire string is not affected by shading
- Continuous MPP tracking
- Monitoring on module basis possible
- More performance with shading and different orientations
- Modules of various power classes can be combined without losses
- detects abnormal behavior of PV connectors, prevents potential safety issues
Features of the S500B optimizer:
- MPPT operating range 12.5 – 105 V
- Module up to 500 W
- 15 A max. short circuit current
- Simple installation due to MC4 connection
- 0.1 m input cable
- 2.3 m output cable
- Safe DC function automatically reduces the voltage to 1 volt pro module in case of fault

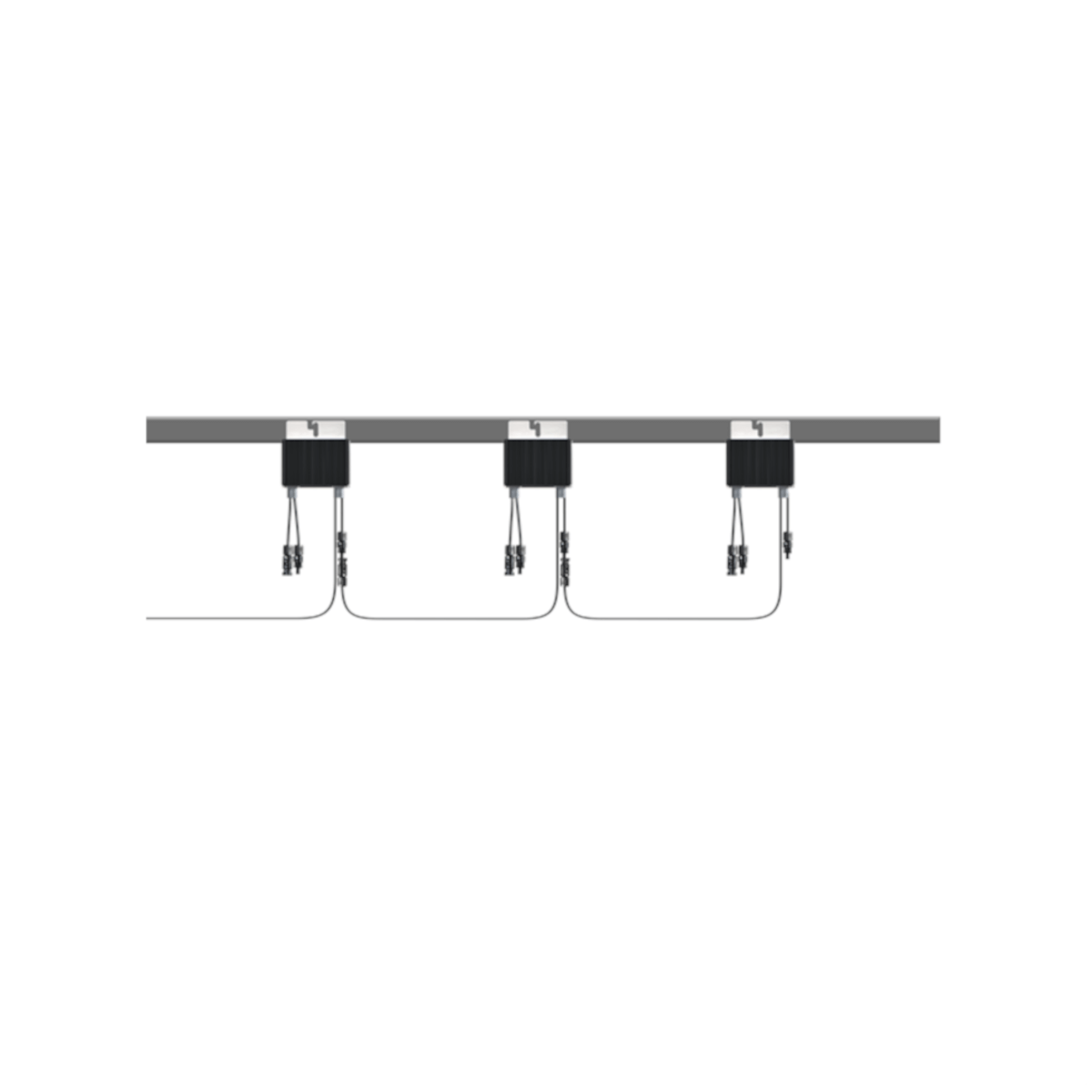

- Easy installation on substructure with T-head bolt
- Compatible with all SolarEdge inverters
- Min. 6 optimizers per string in 1-phase inverters
- Min. 14 optimizers per string for 3 phase inverters
- Min. 14 optimizers per string for 3 phase inverters and 277/480 V grid
Power losses for an entire string due to shading or different orientations are a thing of the past with SolarEdge power optimizers. Thanks to module-level MPP tracking, each module is controlled individually, allowing the string to deliver the maximum available power. Easy installation and maximum yield is easy with the S500B optimizers.
