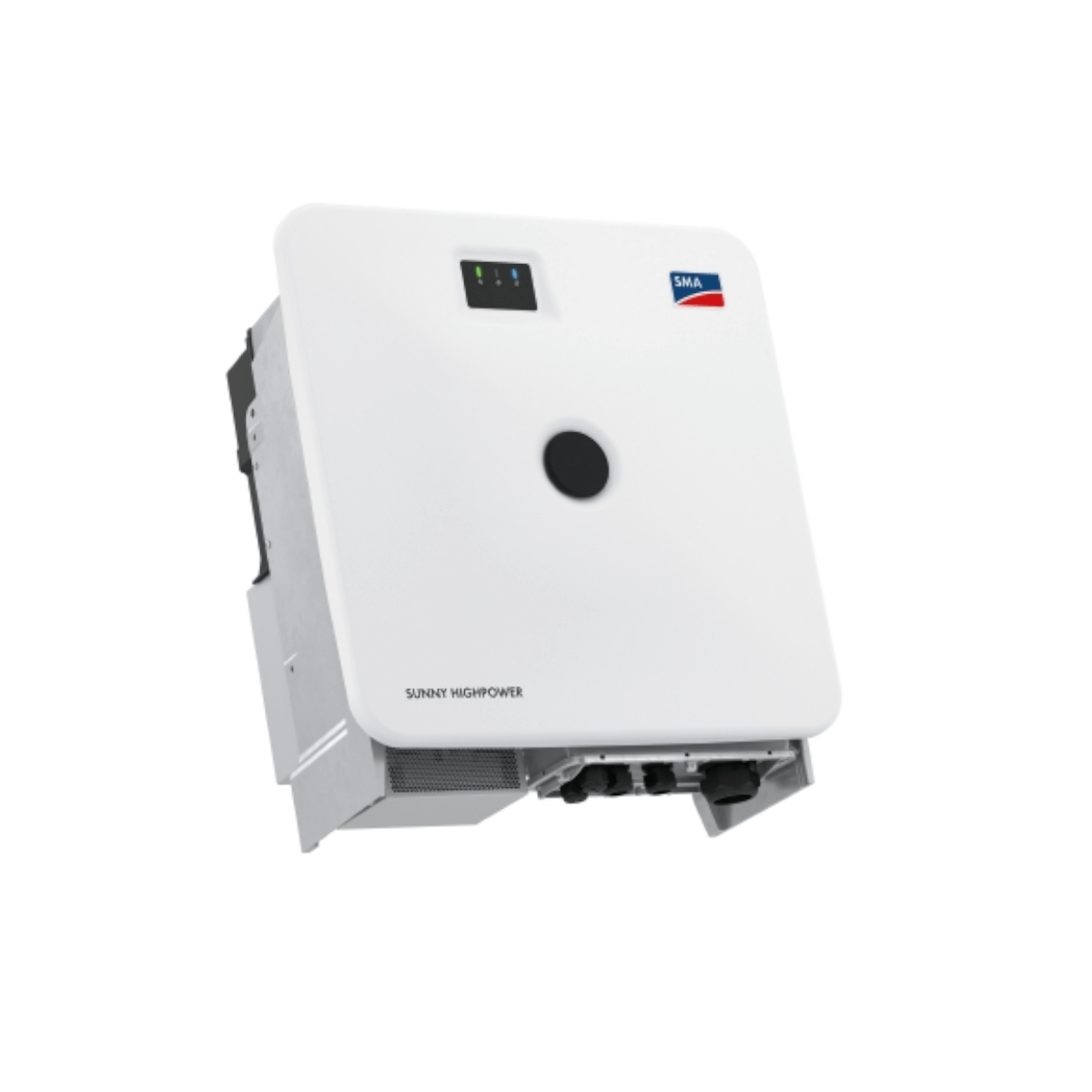

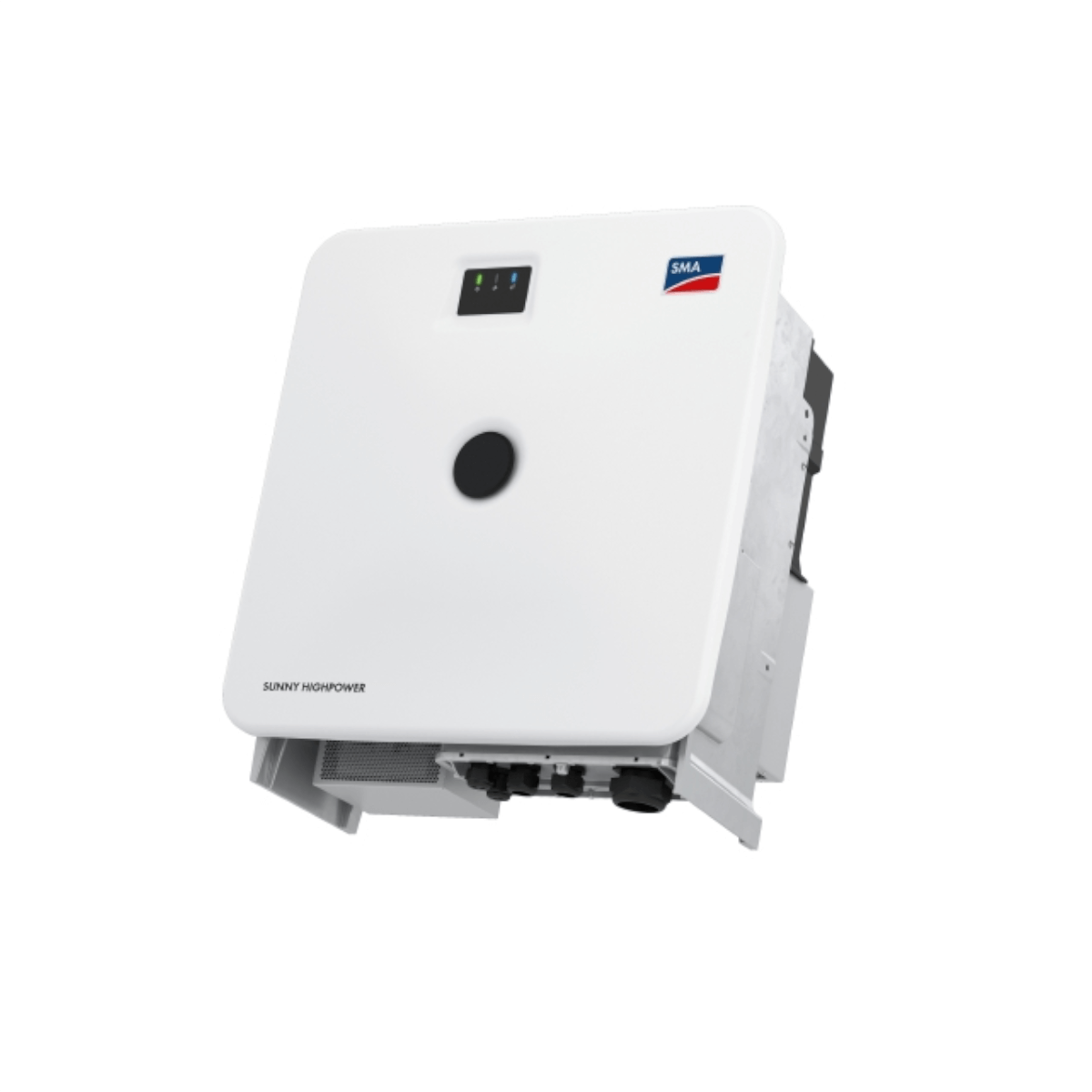

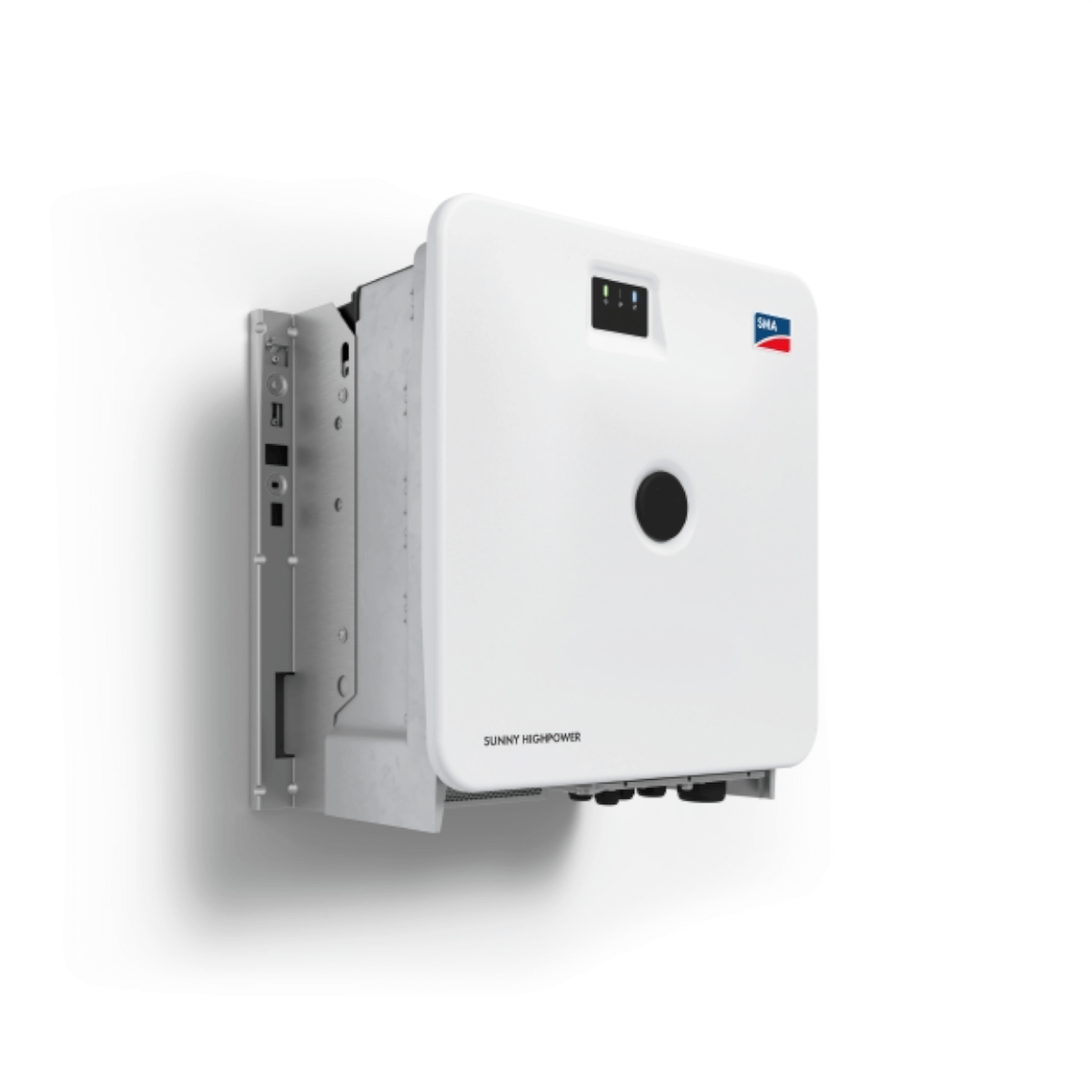

SMA Sunny Highpower PEAK3 SHP 100-21
| Type of manufacturer: | SHP 100-21 |
|---|---|
| Manufacturer Art. No.: | 3-100-1000-1-21 |
| Art. Nr.: | 8977 |
| Pieces per package unit: |
|
| Phases: | 3 |
| MPP-Tracker: | 1 |
| AC power: | 100 kW |
| Warranty: | 5 years |
| Communication: | Speedwire / Webconnect |
| MPP voltage range: | 590 - 1000 Volt |
| Inverter type: | PV inverter, Project inverter |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8977
Description
The SMA Sunny Highpower Peak3 SHP 100-21
No approval for VDE-AR-N 4105, only for VDE-AR-N 4110/4120
The Sunny Highpower PEAK3 is perfect for large PV systems that require an MPP tracker and feed in at medium or high voltage level. With the help of a project-specific DC combiner box, it is possible to oversize the PV system by up to 200 %. The inverter can also withstand temperatures of up to 50 °C without derating. The PEAK3 comes with the proven SMA platform with integrated web server and offers high reliability in addition to a flexible, decentralized system design. In combination with the SMA Data Manager, the PEAK3 is fully compatible with the ennexOS energy management platform.
Product advantages
- Fast commissioning
- Flexibility in the use of combiner boxes
- Overdimensioning of up to 200 %
- Integrated overvoltage protection DC (type 2) and AC (type 3)
Product features SMA Sunny Highpower PEAK3 SHP 100-21
- Mains connection: 3-phase
- AC rated power: 100 kVA
- MPP tracker: 1
- MPP voltage range: 590 V – 1.000 V
- Max. input current DC: 180 A
- Max. short-circuit current: 325 A
- Communications: 2 x ethernet RJ45
- Protection categories: IP65
- Dimensions: 830 x 770 x 462 mm (H x W x D)
- Weight: 99 kg
