Raycap overvoltage protection DC type II 2 MPPT, terminals with 2-way spring connection without tools
| Type of manufacturer: | ProTec T2-1100PV-5Y-L-RG-BOX |
|---|---|
| Manufacturer Art. No.: | IZ515938000 |
| Art. Nr.: | 11889 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11889
Description
Raycap DC overvoltage protection, type II for 2 MPPT and 2 strings (3 strings possible through parallel connection)
Use: in accordance with VDE 0100-443 and 0100-534, buildings without external lightning protection.

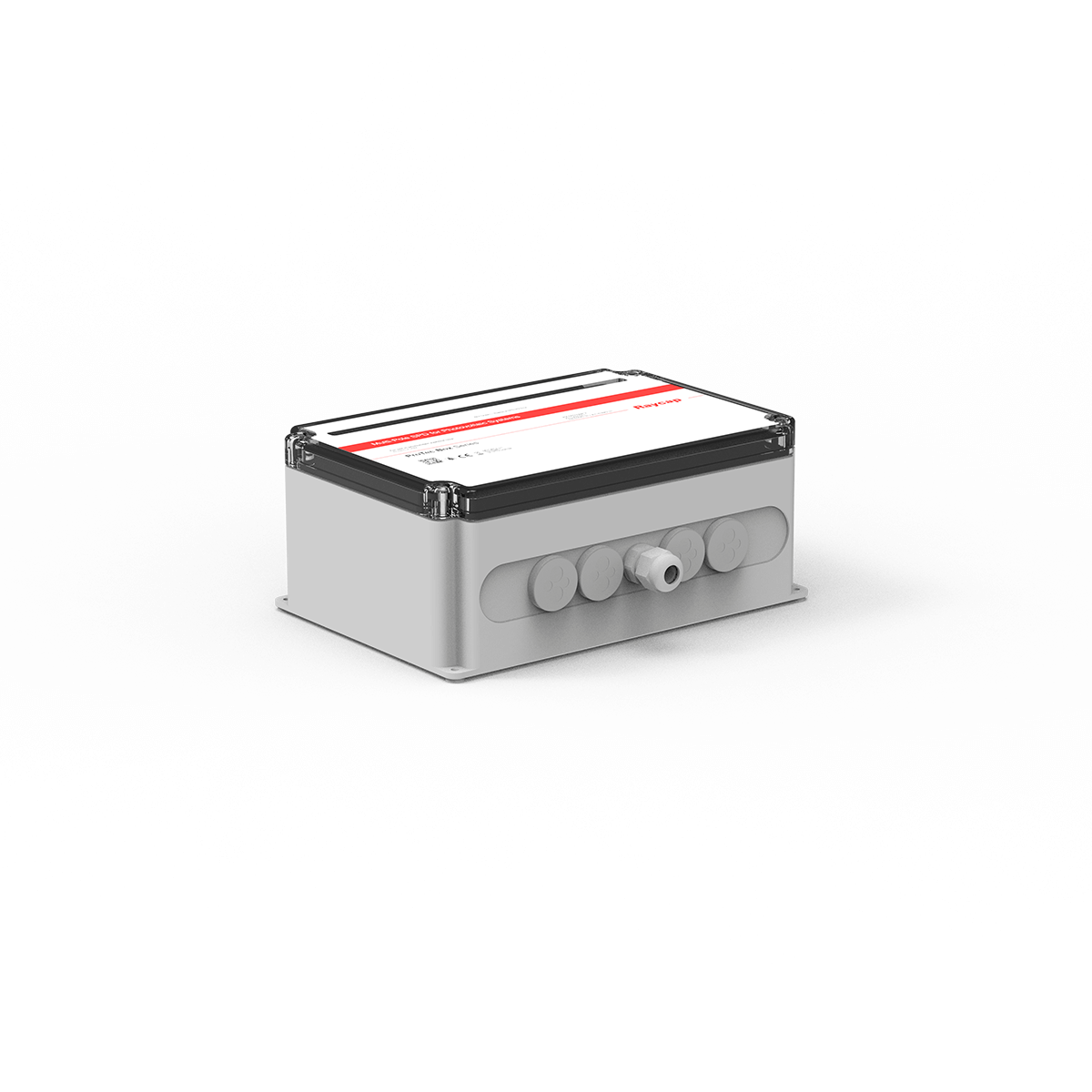

Compact and pre-assembled box with type II overvoltage arrester for the DC side. Suitable for inverters with up to 2 MPP up to 1100 V DC voltage. Twin wire end ferrules are required.
Product features:
- Highest continuous voltage: 1100 V
- Rated current: 35 A
- Protection category: IP 65
- Number of MPP trackers: 2
- Number of strings: 2 (3 strings possible through parallel connection)
- PE conductor cross-section: up to 16 mm²
- Conductor cross-section PV strings: up to 6 mm²
- Connection of PV strings with twin wire end sleeves
- 2 wires per terminal
Product advantages:
- Quick surface-mounted installation
- Transparent cover facilitates identification of the failure status on the arrester
3 strings can be connected in parallel.
