Mounting system package for 20 modules from K2, D-Dome, flat roof
| Art. Nr.: | 8033 |
|---|---|
| Type of roof: | Flat roof, Package |
Prices are only visible to business customers upon successful registration.
On request
Product number:
8033
Description
Substructure for 20 modules from K2 with D-Dome components for flat roofs

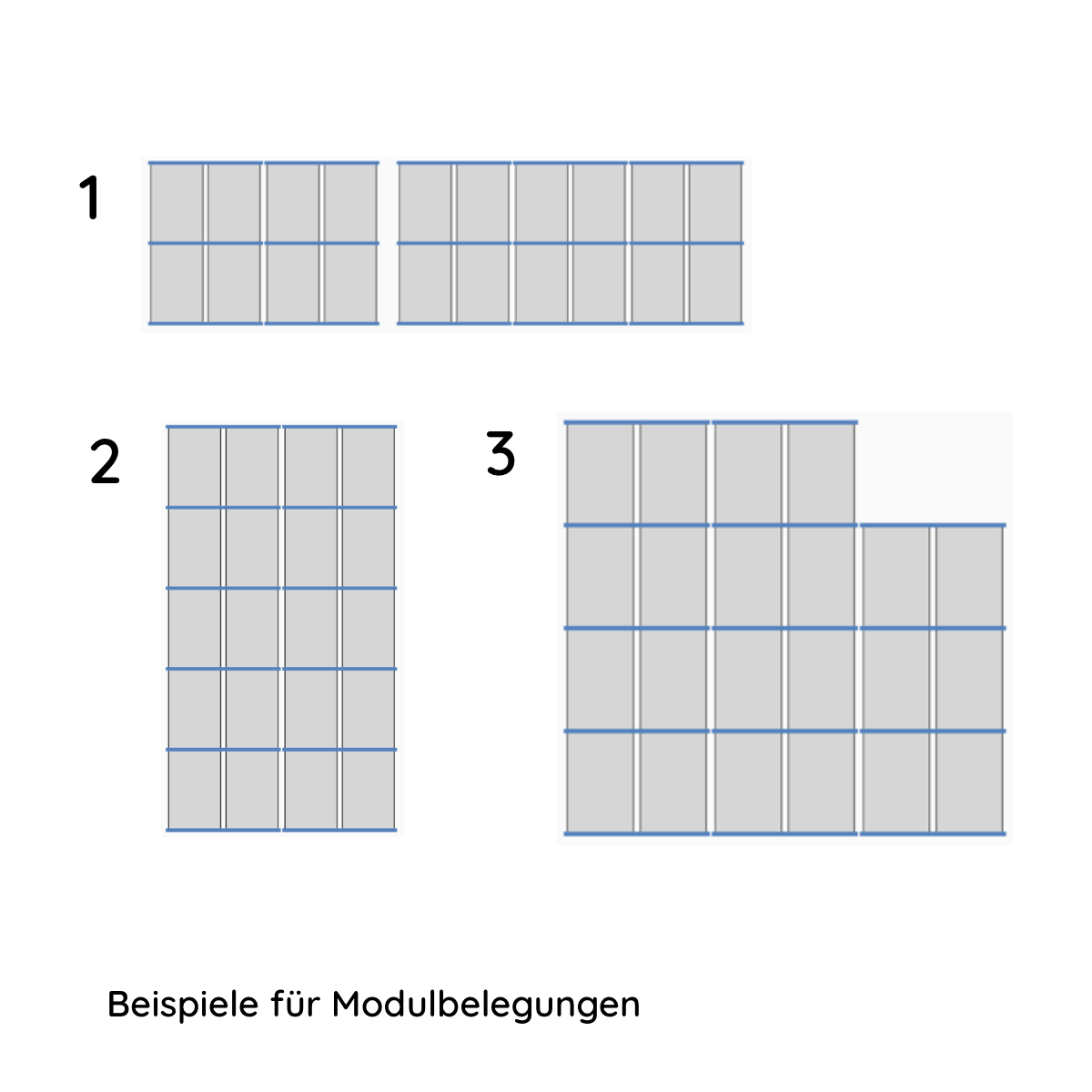

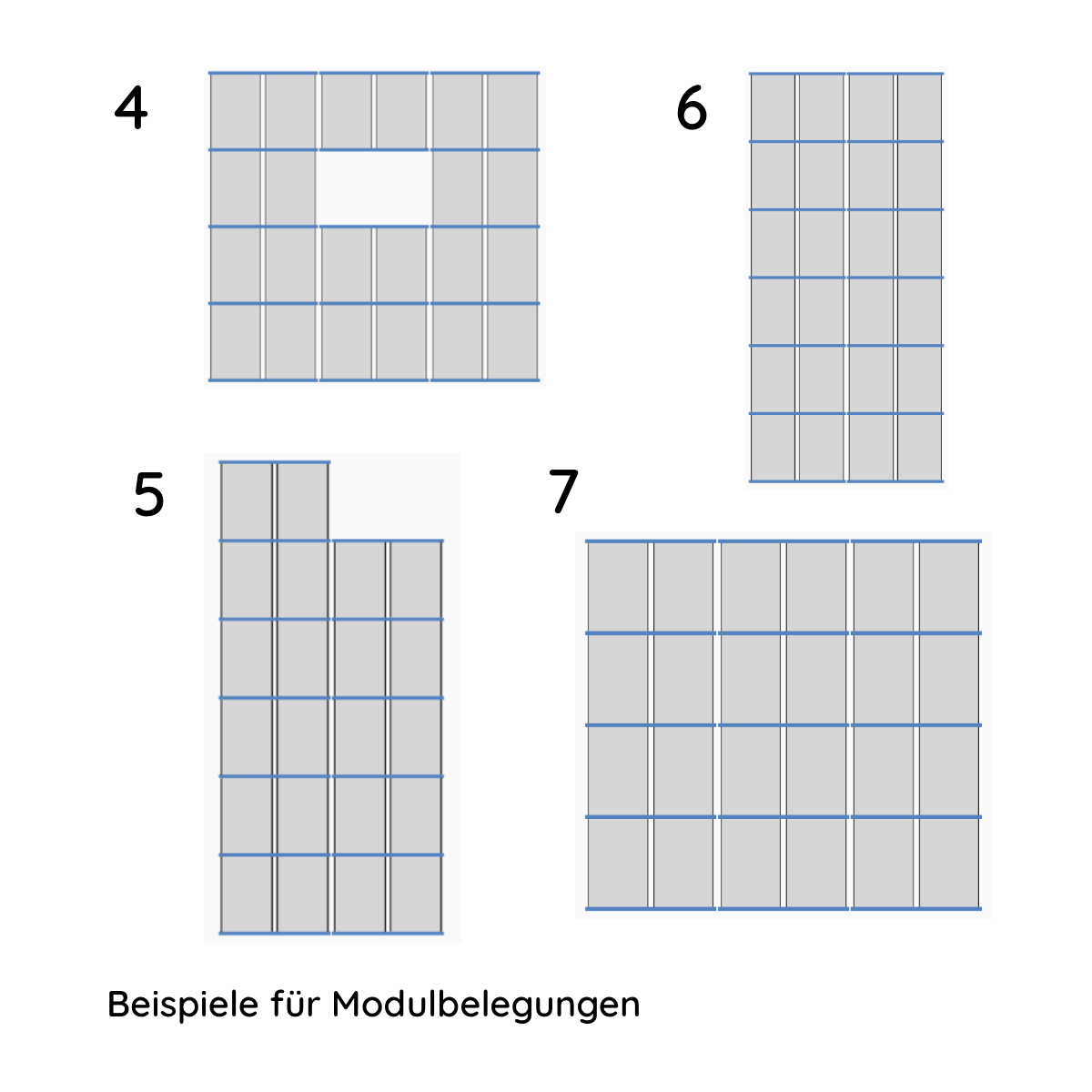

Memodo mounting system packages are all-inclusive packages. The number of modules depends on the respective configuration and even up to 24 modules can be installed. The package is suitable for east/west installation on flat roofs. It does not replace the structural release process. Static approval is achieved by means of the free K2 Base Tool. All components are made by the German manufacturer K2 Systems. For module widths from 1061 to 1170 mm.
Eine Änderung der im Paket enthaltenen Artikel ist nicht möglich.
Advantages
- Easy and quick order thanks to complete package
- Contains all mounting system components (without ballast)
- Shipment mostly in packaging units
- Easy to organise your own inventory
The order includes
- 15 x mounting rail base rail L in set
- 30 x Peak Peak 6.10
- 40 x MiniClamb Black MC 30-50 middle clamp
- 40 x MiniClamb Black EC 30-50 end clamp
- 10x Dome 6 Connector Set Rail Connectors
Not included in delivery
- Components for lightning protection
- Components for ballasting or mechanical fixing procedures
You need more components for your mounting systems?
No problem! You can easily order individual components in addition to this package. It is not possible to reduce or remove items included in the package.
