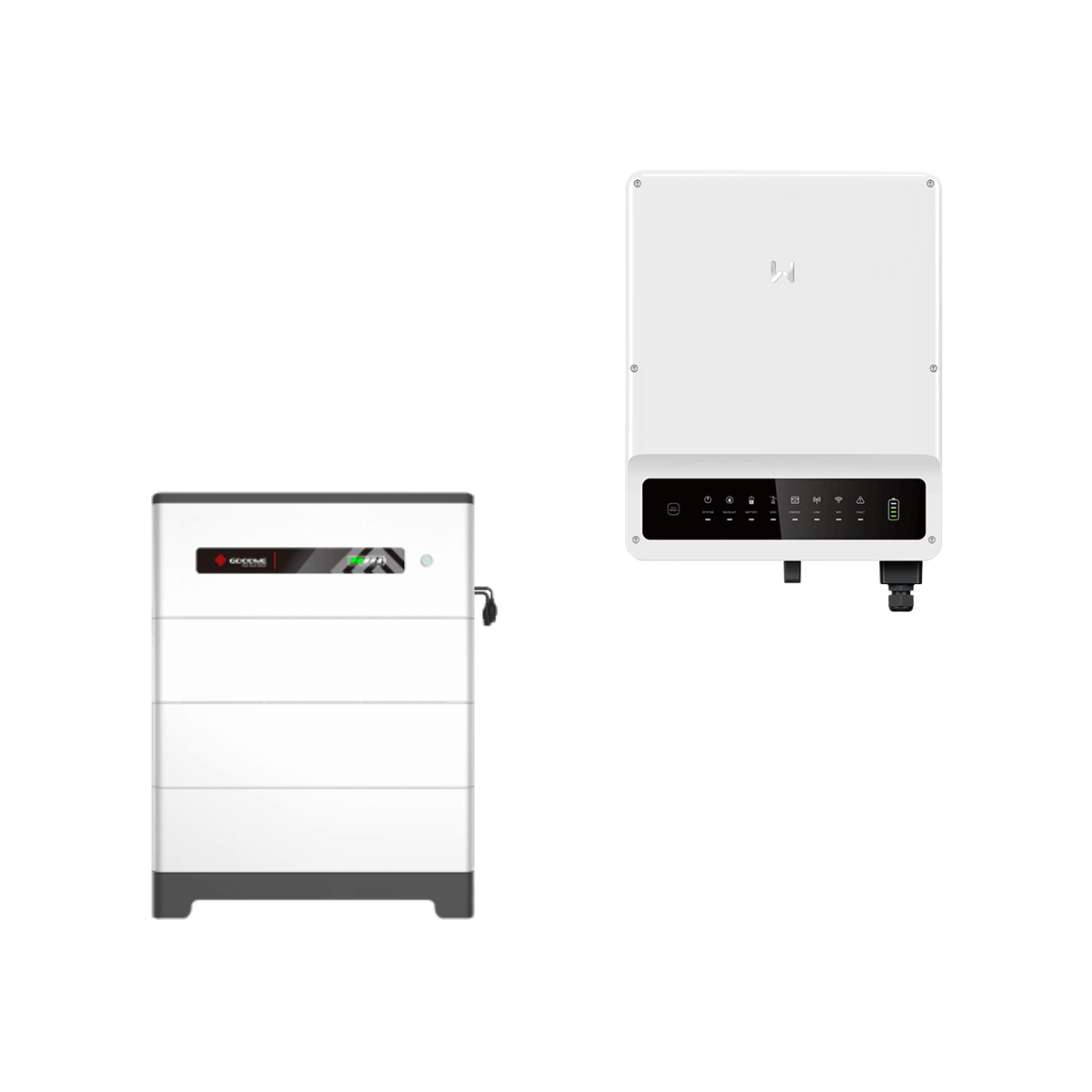

GoodWe Lynx Home F Plus – LX F9.8-H with GoodWe ET Plus – GW6.5K-ET
| Art. Nr.: | 8829 |
|---|---|
| Inverter: | GW6.5K-ET |
| Phases: | 3 |
| Solar battery: | LX F9.8-H |
| Net capacity: | 9.83 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8829
Description
The GoodWe Lynx Home F Plus – LX F9.8-H with the GoodWe ET Plus – GW6.5K-ET storage package
With the manufacturer's proprietary comprehensive solution, GoodWe offers the Lynx Home F Plus high-voltage battery together with the 3-phase hybrid inverter of the ET Plus series. Both systems are coordinated with each other and serve to optimize self-consumption. In combination, they can continue to supply selected loads with power in the event of a grid failure. Other loads such as wallboxes and heat pumps can also be integrated via the potential-free contact in the hybrid inverter.
Package advantages
- 3-phase smart meter already included in the ET Plus series
- Capable of providing emergency power
- High battery safety standard VDE 2510-50
- Integration into the SEMS portal
Product features Lynx Home F Plus – LX F9.8-H
- Usable battery capacity: 9.83 kWh
- Rated voltage: 307.2 V
- Rated charge/discharge power: 7.68 kW
- Rated charge/discharge current: 25 A
- Communication: CAN
- Temperature range: Discharge: -20°C - 50 °C
- Temperature range: Charging: 0°C - 50°C
- No battery upgrade possible for the time being
- Parallel connection of up to 8 towers (Up to 131 kWh)
- Dimensions: 625 x 600 x 380 mm (H x W x D)
- Weight of PCU and base: 25 kg / 4 kg
- Weight of a battery module: 43 kg
- Protection category: IP 55
Product features GW6.5K-ET
- Mains connection: 3-phase
- AC power: 6.5 kVA
- 6.5 kW emergency power output via separate output
- MPP tracker: 2
- String connections per MPPT: 1
- Battery connection for high voltage battery (BYD, GoodWe)
- RS485, Wi-Fi (optional LAN)
- Potential free contact available (programmable via PV-Master APP) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection category: IP66
- Weight: 24 kg
Scope of delivery
- Lynx Home F Plus – LX F9.8-H consisting of 1 PCU and 3 battery modules
- GoodWe ET Plus – GW6.5K-ET including 3-phase smart meter
