GoodWe Lynx Home F Plus – LX F9.8-H with GoodWe ET Plus 16A – GW8KN-ET (GoodWe 5+1 promotion)

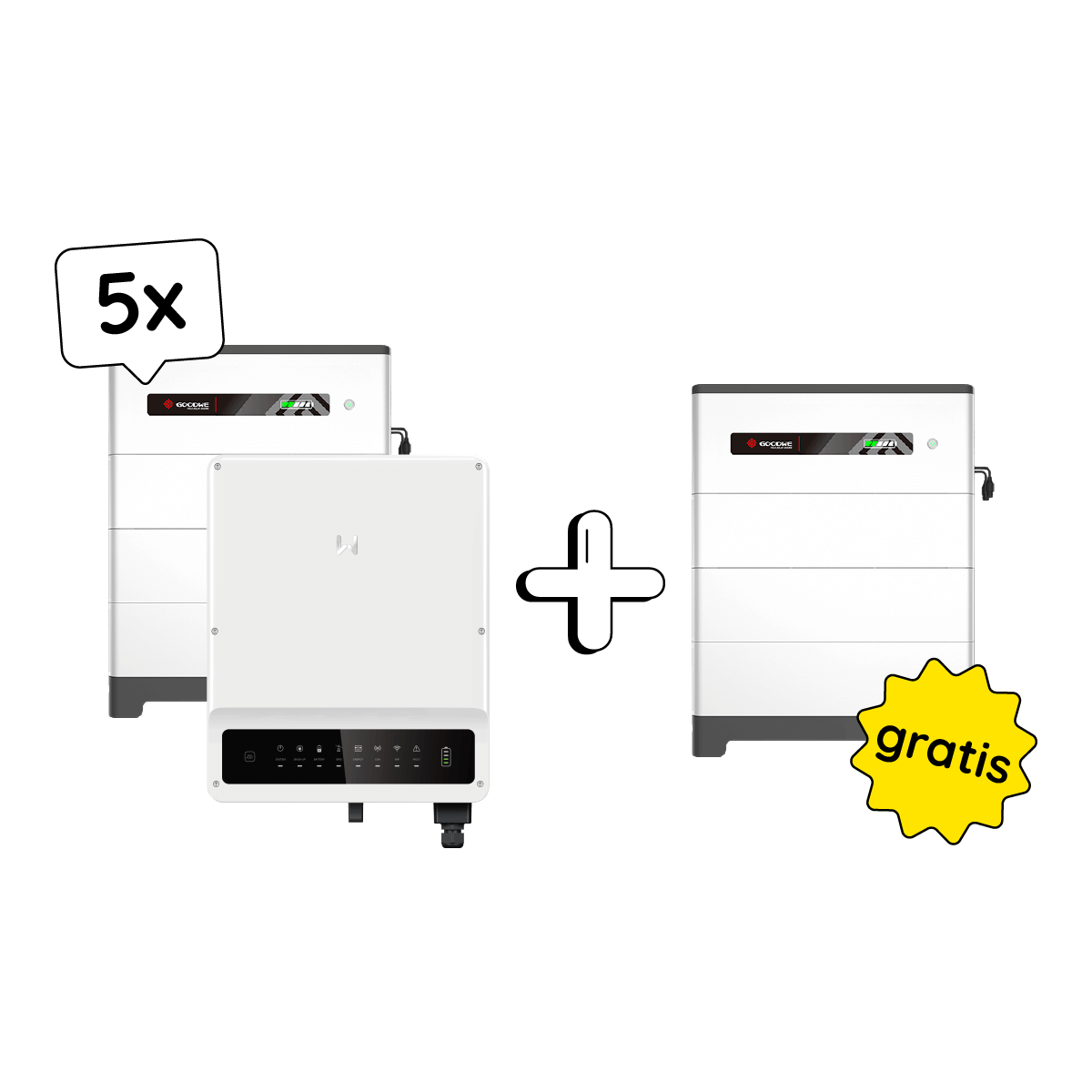

5x GoodWe Lynx Home F Plus LX F9.8-H with GoodWe ET Plus 16A GW8KN-ET + 1x GoodWe Lynx Home F Plus LX F9.8-H free of charge (GoodWe 5+1 promotion)

From July 18, 2024 – August 31, 2024, you will receive a free battery system (PCU + 3 batteries) for every 5 GoodWe packages purchased and delivered (GoodWe Lynx Home F Plus LX F9.8-H + GoodWe ET Plus 16A, GW8KN-ET). Only while stocks last. Cash payment is not possible.

GoodWe offers a free warranty extension to 10 years if a GoodWe Hybrid and a GoodWe battery storage system are put into operation together in the period from May 15, 2023 – Dec. 31, 2024. More information can be found in the attached document in the Downloads tab.

With the manufacturer's own proprietary comprehensive solution, GoodWe offers the Lynx Home F Plus stable high-voltage battery together with the ET Plus series 16A 3-phase hybrid inverter. Both systems are coordinated with each other and serve to optimize self-consumption. Working together, they can continue to supply selected loads with power in the event of a grid failure. Other loads such as wallboxes and heat pumps can also be integrated via the potential-free contact in the hybrid inverter.

Package advantages

• 3-phase smart meter already included in the ET Plus Serie 16A series
• Emergency power capabilities
• High battery safety standard VDE 2510-50
• Integration into the SEMS portal

Product features Lynx Home F Plus – LX F9.8-H

• Usable battery capacity: 9.83 kWh
• Rated voltage: 307.2 V
• Rated charge/discharge power: 7.68 kW
• Rated charge/discharge current: 25 A
• Communication: CAN
• Temperature range: Discharge: -20°C - 50 °C
• Temperature range: Charging: 0°C - 50°C
• Battery upgrading possible
• Parallel connection of up to 8 towers (up to 131 kWh)
• Dimensions: 765 x 600 x 380 mm (H x W x D)
• Weight of PCU and base: 25 kg / 4 kg
• Weight of a battery module: 43 kg
• Protection class: IP 55

Product features GW8KN-ET

• Mains connection: 3-phase
• AC power: 8.0 kVA
• 8.0 kW emergency power output via separate output
• MPP tracker: 2
• String connections per MPPT: 1
• Max. input current per MPPT: 16 A
• Max. short circuit current per MPPT: 21.2 A
• Communication: RS485, Wi-Fi (optionally LAN)
• Potential-free contact available (programmable via PV-Master APP) (SG-Ready)
• Push-in terminals for the communication interfaces simplify installation
• Wi-Fi module included
• Dimensions: 516 x 415 x 180 mm (H x W x D)
• Protection class: IP66
• Weight: 24.0 kg

Scope of delivery

• 5 x GoodWe Lynx Home F Plus – 2x LX F9.8-H consisting of 1 PCU and 3 battery modules
• 5 x GoodWe ET Plus 16A – GW8KN-ET including 3-phase smart meter
• 1 x Lynx Home F Plus – LX F9.8-H consisting of 1 PCU and 3 battery modules (free of charge)
