GoodWe BTC – GW50K-BTC
| Type of manufacturer: | GW50K07-BTC |
|---|---|
| Manufacturer Art. No.: | BTN0050-04-00P |
| Art. Nr.: | 9385 |
| Pieces per package unit: |
|
| Phases: | 3 |
| AC power: | 50 kW |
| Warranty: | 5 years |
| Communication: | RS485, WiFi, LAN |
| Inverter type: | Battery inverter |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
On request
Product number:
9385
Description

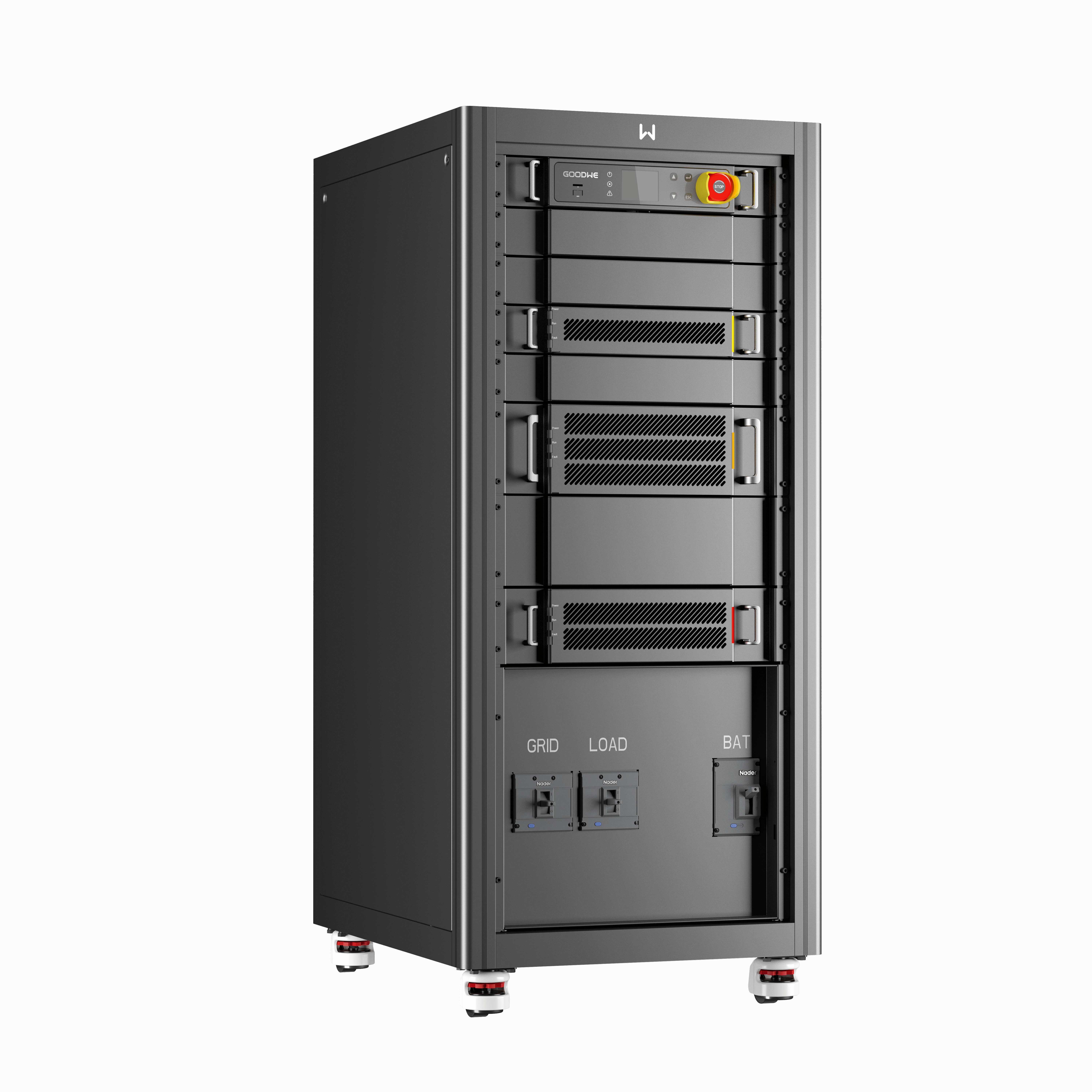

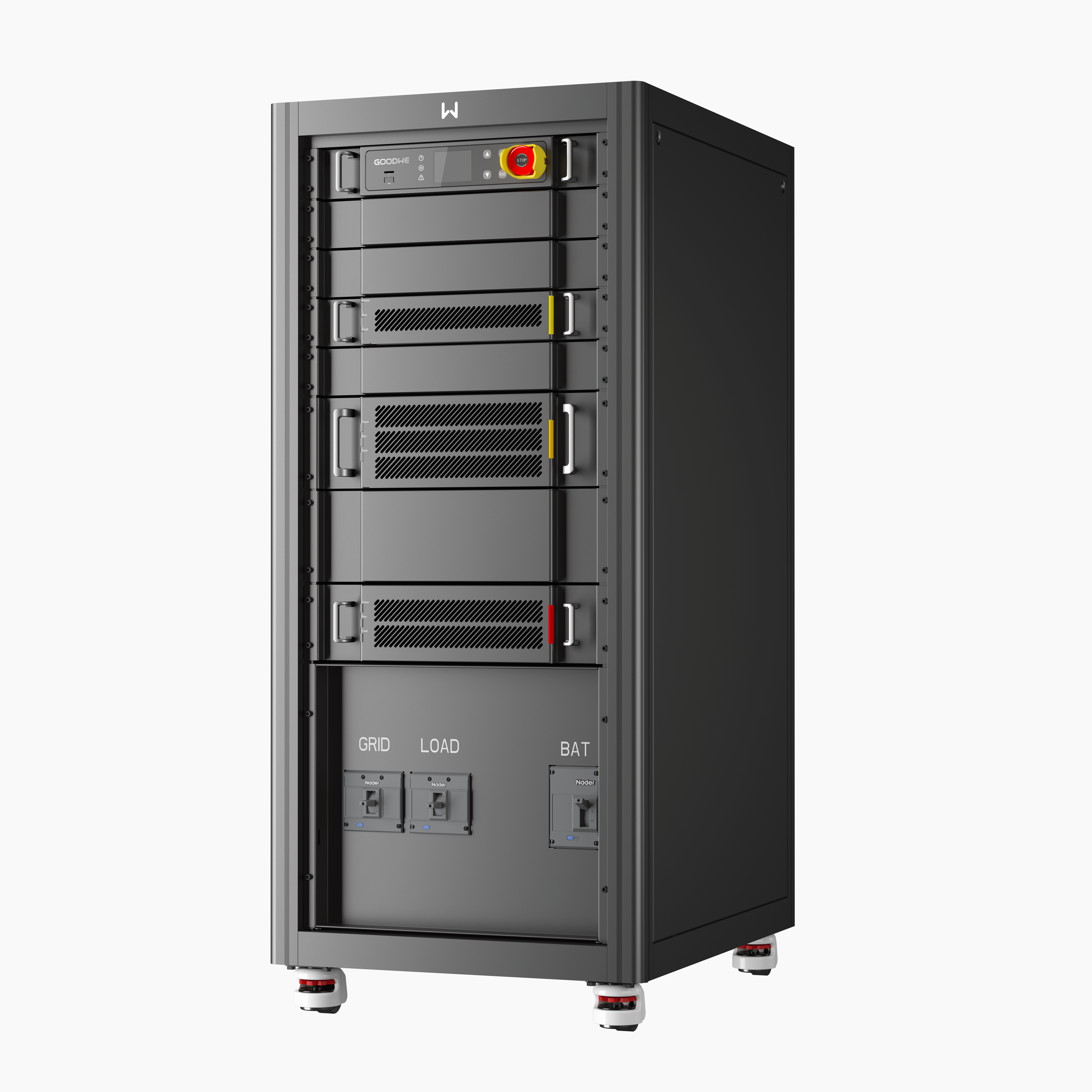

The GoodWe BTC battery inverter with 50 kW AC power
The GM3000C smartmeter is included in the scope of delivery. The 3 corresponding current transformers must be purchased separately.
With the GoodWe battery inverter 50 kW and the GoodWe Lynx C battery (101 - 156 kWh), energy storage systems can be implemented in commercial and industrial applications. The battery inverter can be connected to an existing or new PV system. The GW50K-BTC has an IP20 protection category and is suitable to be installed indoors. The combinable operating functions self-consumption, peak load capping, emergency power function and time of use are included.
Product advantages
- Peak shaving
- AC and DC overvoltage protection type 2 integrated
- Emergency power with 50 kW
- Black start capability
- 3-phase smartmeter GM3000C included in delivery
- Integration into the SEMS portal
Product features GW50K-BTC
- Mains connection: 400 V, 3-phase
- AC power: 50 kVA
- 50.0 kW emergency power output via separate output
- Battery input: 1
- Max. charging current: 100 A
- Max. discharge current: 100 A
- Max. charging power: 50 kW
- Max. discharge power: 55 kW
- Communication: RS485, Wi-Fi, LAN
- 3-phase smart meter GM3000C included in scope of delivery
- Commissioning via SolarGo App
- Dimension: 1360 x 585 x 750 mm (H x W x D)
- Protection category: IP 20
- Weight: 124 kg
Battery compatibility
- GoodWe Lynx C (101-156 kWh)
