enwitec overvoltage protection DC types I+II, 6 MPPT, terminals
| Type of manufacturer: | GAK-enwitec-S-1000-6x2R-X-BC-PC-1.0 |
|---|---|
| Manufacturer Art. No.: | 10014960 |
| Art. Nr.: | 4238 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
4238
Description
DC overvoltage protection, types I+II for 6 MPPT
Area of application: according to VDE 0100-443 and 0100-534, building with and without external lightning arrester.

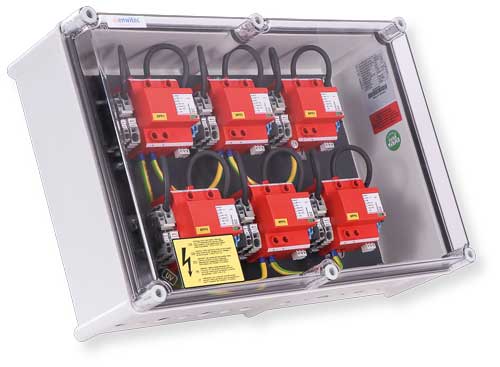

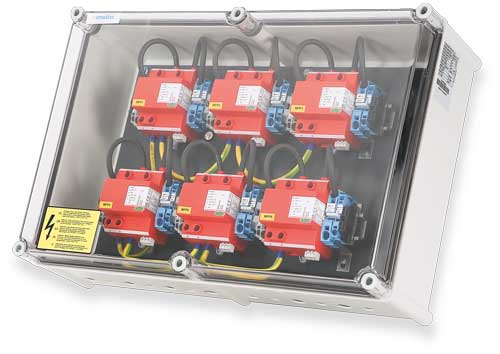

Compact and pre-fabricated box with types I+II surge arresters for the DC side. This overvoltage box has 3 terminals each with spring-type terminal contacts on the input and output sides. Here, cable end sleeves are not required. This results in an even larger contact area and low contact resistance.
Specifications:
- Arrester elements of types I+II for 6 MPP trackers
- Screwless input terminals up to 10 mm²
- Screwless output terminals up to 16 mm²
- Current rating 15A per terminal / 45A in total
- IP65
